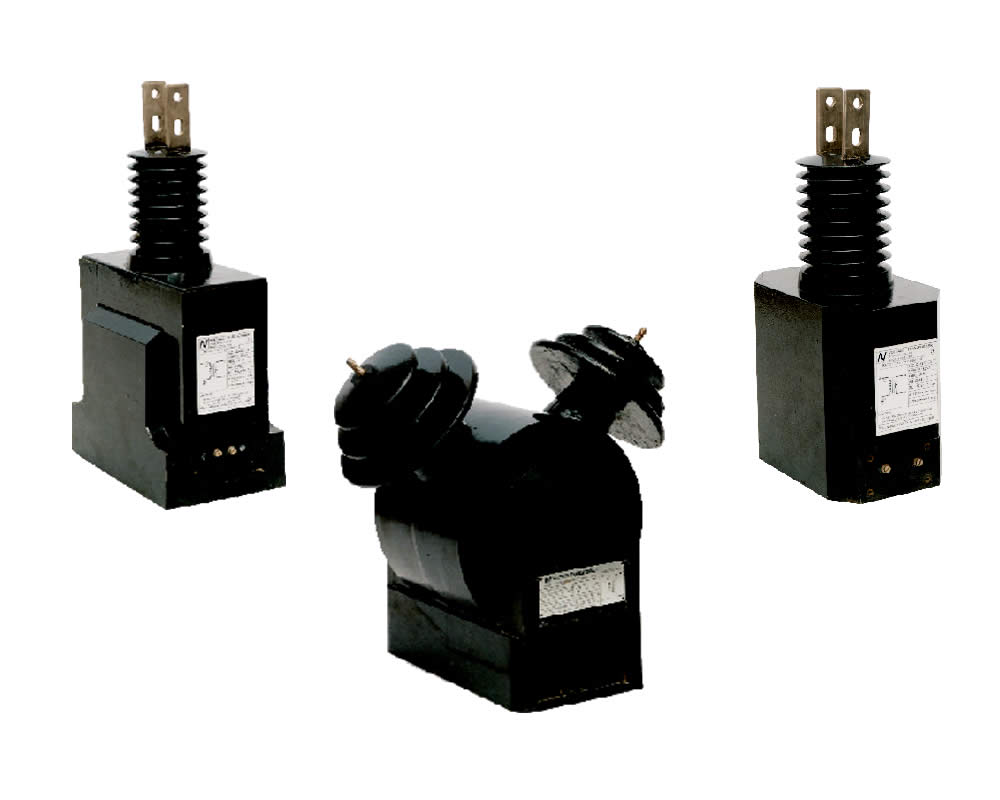

Outdoor Resin casted type
- Different Ratios with primary rating up to 20000 Amps
- Can be wound type, bar type or window type
- Multi ratio with tapings on secondary
- Special electrical/mechanical/mounting needs possible
- For up to 40 kA 3 seconds STC rating
- Secondary Terminals can be brass/copper studs/terminals (8-32/10-32)with hardware housed in IP63 terminal box
- Primary terminals can be copper bar with metric/unc threads suitable for primary current capacity
- Insulation level Up to 36 kV; BIL 170kVp
- Frequency 50 - 60 Hz
- Outer Encapsulation Cyc-aliphatic/HECP casted
- Thermal Rating up to 2.0 @ 30°C ambient, 1.5 @ 55°C ambien
