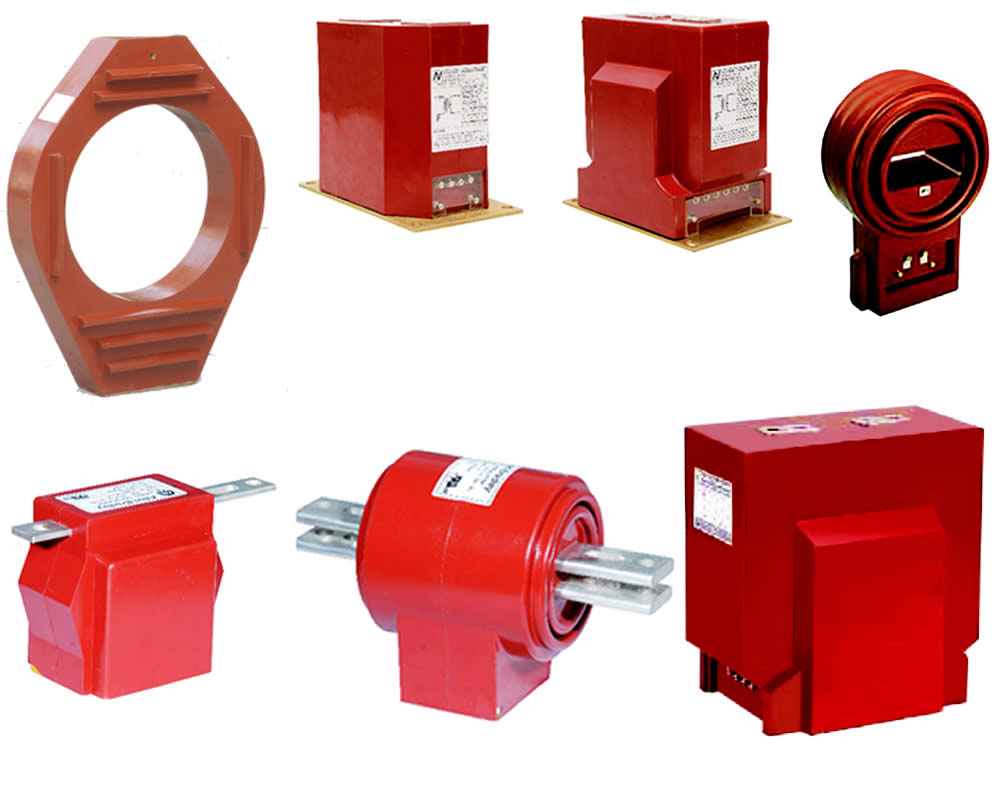

Indoor Resin casted type

• Different Ratios with primary rating up to 20000 Amps
• Can be wound type, bar type or window type
• Multi ratio with tapings on primary or secondary
• Special electrical/mechanical/mounting needs possible
• For up to 40 kA 3 seconds STC rating
• Secondary Terminals can be brass/copper studs/terminals (8-32/10-32)with hardware
• Primary terminals can be copper pads/studs with metric/unc threads suitable for primary current capacity
• Insulation level Up to 36 kV; BIL 170kVp
• Frequency 50 - 60 Hz
• Outer Encapsulation Epoxy/Poly-urethane casted
• Thermal Rating up to 2.0 @ 30°C ambient, 1.5 @ 55°C ambient
