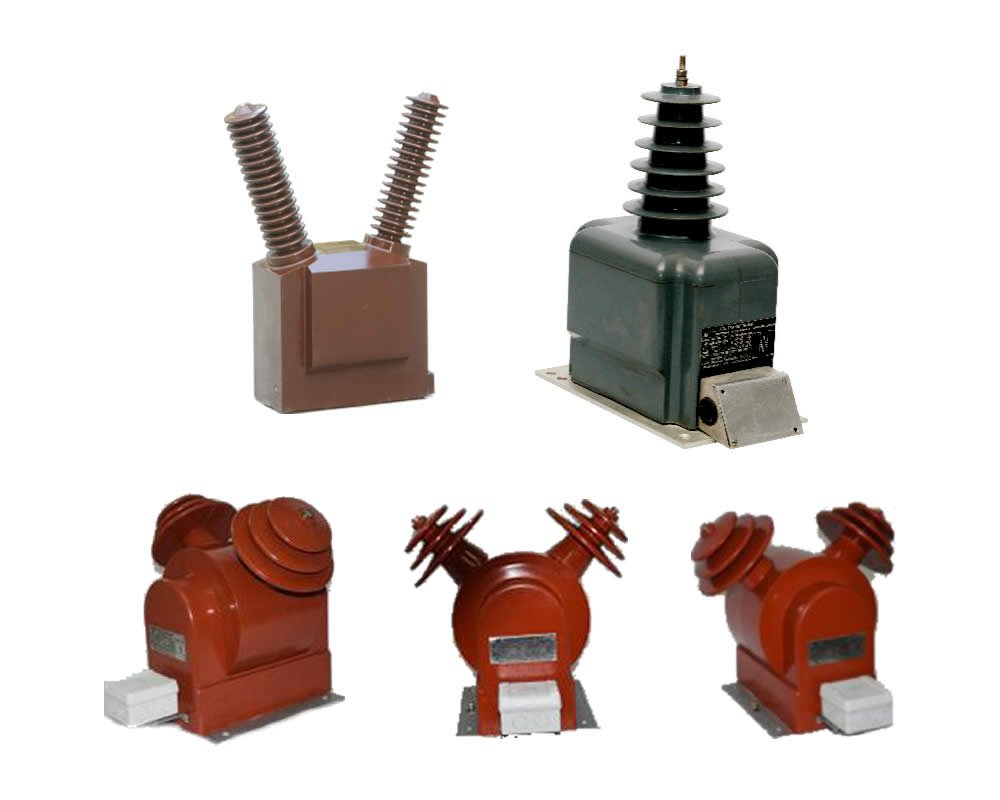

Download PdfOutdoor Resin casted type
- Different Ratios with primary rating up to 36000 volts
- Can be single (Line to earth) or dual pole (Line to Line)
- Can be supplied with fuse in secondary for protection
- Multi winding possible with open delta winding
- Special electrical/mechanical/mounting needs possible
- For up to 1.9 times continuous voltage factor
- Secondary Terminals can be brass/copper studs/terminals (8-32/10-32)with hardware
- Primary terminals can be copper/brass bars or inserts with metric/unc threads for
- Insulation level Up to 36 kV; BIL 170kVp
- Frequency 50 - 60 Hz
- Outer Encapsulation Cyclo-aliphatic/HECP resin
