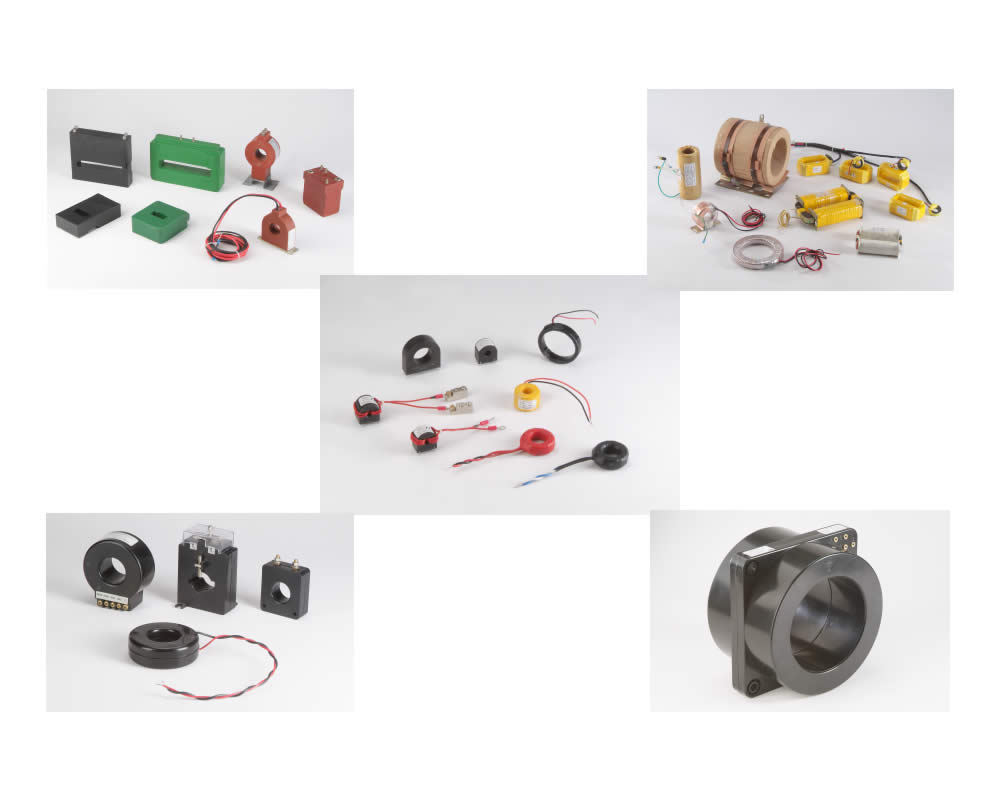

Indoor Resin casted type
- Can be resin casted, plastic cased or tape insulated
- Different Ratios with primary rating up to 20000 Amps
- Can be wound type, bar type or window type
- Multi ratio with tapings on primary or secondary
- Special electrical/mechanical/mounting needs possible
- For up to 40 kA 3 seconds STC rating
- Secondary Terminals can be brass/copper studs/terminals (8-32/10-32)with hardware
- Primary terminals can be copper pads/studs with metric/unc threads suitable for primary current capacity
- Frequency 50 - 60 Hz
- Outer Encapsulation Epoxy/Poly-urethane casted
- Thermal Rating up to 2.0 @ 30°C ambient, 1.5 @ 55°C ambient
